Basic Info.
Modulation System
PWM
In-Out
Step-down Type
Power Supply Voltage
AC85-265
Brand
OEM
Output Voltage
3V
Output Current
60A
Typical Efficiency
85%
Protection
Auto Recovery
Transport Package
Each One in a White Box
Trademark
SHAMPOWER
Origin
Dongguan, China
Production Capacity
100000000PCS/Year
Product Description
Quick Detail:
1. 15 years of experience in R&D and production of switching power supplies
2. 5V & 12V & 18V & 24V & 36V & 48V available to switching power supplies
3. Available in wattages 12W to 2000W
4. 85% high efficiency
5. 24 hours 100% full load burn-in test
6. Short circuit, overload, overvoltage, overcurrent and leakage protection
7. 10 years of trouble-free working time
8. CE & RoHS & FCC listed
9. ODM & OEM supported and Fast delivery

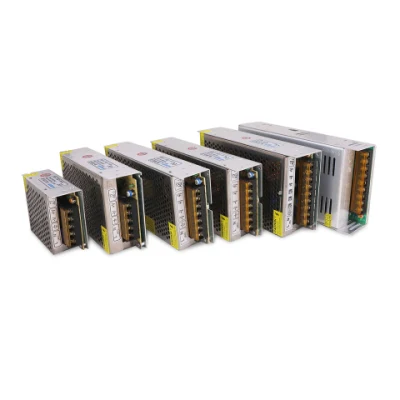

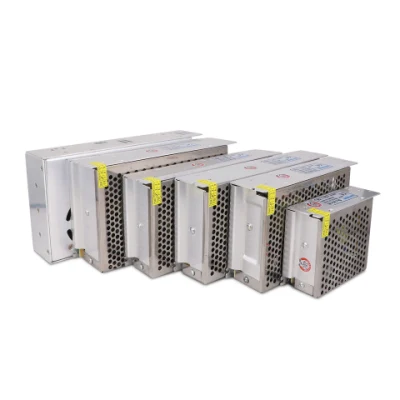

AC to DC 3V60A constant voltage led switch mode power supply
2. 5V & 12V & 18V & 24V & 36V & 48V available to switching power supplies
3. Available in wattages 12W to 2000W
4. 85% high efficiency
5. 24 hours 100% full load burn-in test
6. Short circuit, overload, overvoltage, overcurrent and leakage protection
7. 10 years of trouble-free working time
8. CE & RoHS & FCC listed
9. ODM & OEM supported and Fast delivery
AC to DC 3V60A constant voltage led switch mode power supply
| DC Output | DC Voltage: 3V |
| DC Current :60A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:>85% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
Applications:
1. Digital and electronic products2. 3D Printer
3. Fiber transceivers, game player, LED, CCTV camera
4. Electrical equipment, Instrumentation
5. Industrial equipment
6. Communications and security products;
7. LED Strip Lighting/ LED lamp / LED Lights
8. LED Display, etc.
Packaging & Shipping:
Our power supply package: Each power supply is in one white gift box; 100 boxes to a carton; Customization Accepted
Delivery Detail: usually 3-5 working days also depending on order quantity.
Payment:
We accept T/T, LC, Western Union, and Paypal before production buyers have any problems with payment, please feel free to contact us.
