Cyky Switching Mode Adjustable Switch Dbd Power Supply

Looking for a reliable Cyky Switching Mode Adjustable Switch Dbd Power Supply? Look no further! We are a factory specializing in power supply manufacturing.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CY-DBD-5KV
Input Voltage
Single Phase 200-220VAC
Cooling Mode
Air-Cooling
Output Power
5kw
Warranty
One Year
Transport Package
Wooden Box
Specification
480*135*380(mm)
Trademark
CY
Origin
Zhengzhou, China
Production Capacity
100 Sets Per Month

Product Description

CYKY Switching Mode Adjustable Switch DBD Power Supply


Description:
Model: DBD Series for DBD plasma cleaner equipment
Alias: Dielectric barrier discharge power supply
DBD power supplys with DB9 pin, it is controlled by analog signal or lcd screen in the front panel.
Factory default analog interface.

Feature:
1)Small volume, light weight, high efficiency, simple structure, easy to operation, powerful, stable and reliable.
2)The circuit adapt modular design, convenient debugging and maintenance.
3)Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.


Technical parameter of plasma power supply:

Product Name DBD power supply
Items No. CY-DBD-5KV
Input Voltage Single Phase 200-220VAC
Output Power 5KW
Current 0.1A
Voltage 50KV
Frequency 20~50khz
Waveform Quasi-sine-wave
Output Mode Constant power, constant current, or constant voltage is for customized
Regulation Precision ≤1%
Efficiency ≥90%
Power Factor cosΦ≥0.9
Power Switch DB9 pin
Control Mode 1)Analog signal control: TTL potential
2)Digital interface control can be custoimized: RS-485 /RS-232
Insulation Class B
Protect Grade IP20
Protection Response Time 1uS
Insulation Resistance Input - Output: ≥20MΩ
Input - Enclosure: ≥20MΩ
Insulating Strength Input - Output: 2000VAC, 1minute
Input - Enclosure: 3500VAC, 1minute
Ambient Conditions Temperature: (-20~50)ºC
Display Mode Chinese-English LCD display
Display Content Working state, output voltage, output current, set value
Output Protection Overvoltage, overcurrent and offset
Input Protection Overvoltage, undervoltage, overcurrent, open phase
Insulation Class B
Protect Grade IP20
Protection Response Time 1uS
Input Shell Resistance ≥20MΩ
Output Shell Resistance ≥20MΩ
Input Withstand Voltage 2000V/1min
Output Withstand Voltage 3500V/1min
Temperature 0~35ºC
Humidity ≤80%
Cooling mode Air-cooling
Dimensions 480*135*380(mm)

Application:
Ozone generation, power supply for cnc plasma, plasma cleaning and plasma formation.etc.

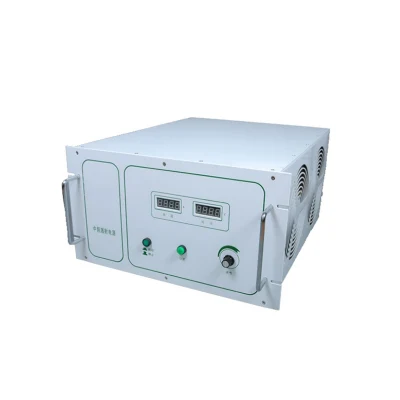

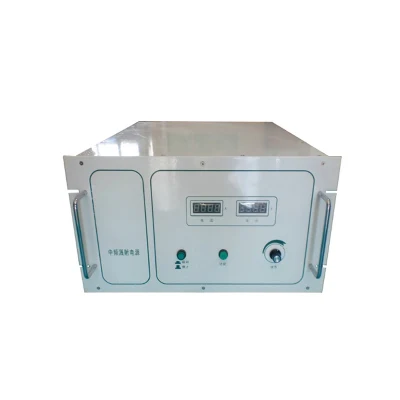

More photos of plasma power supply:
