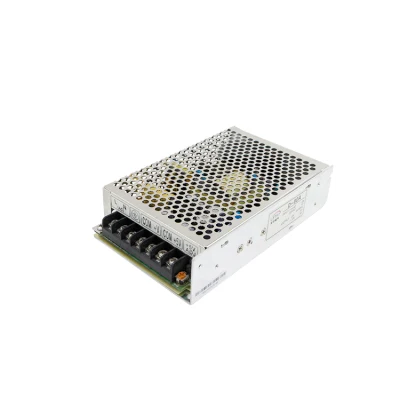

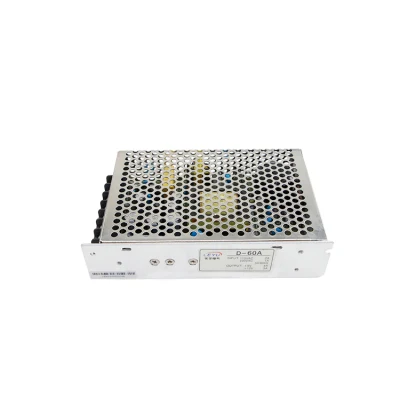

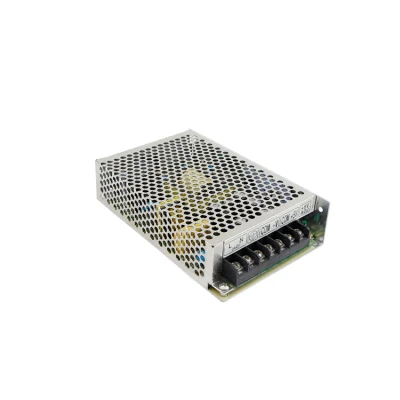

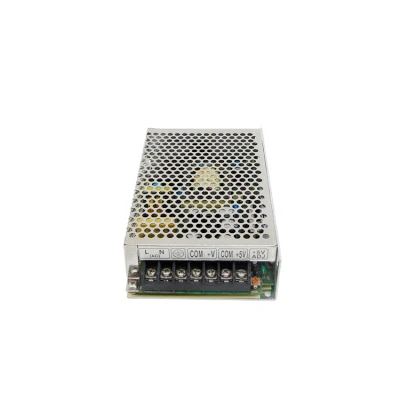

60W Dual Output Switching Power Supply D-60 series
Features:
High efficiency, high reliability
Universal AC input /full range
100% full load burn-in test
Protections: Short circuit/ Over load/ Over voltage
LED indicator for power on
Cooling by free air convection
Fixed switching frequency at 54KHz
2 years warranty
SPECIFICATIONS | ||||||
OUTPUT |
| |||||
Model | D-60A | D-60B | D-60C | |||
Output number | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
DC Voltage | 5V | 12V | 5V | 24V | 15V | -15V |
Rated Current | 4A | 3A | 2A | 2A | 2.5A | 2.5A |
Current Range | 0.3-6A | 0.2-3A | 0.3-2A | 0.2-2A | 0.3-3A | 0.2-3A |
Rated Power | 56W | 58W | 75W | |||
Ripple & Noise | 75mVp-p | 150mVp-p | 75mVp-p | 150mVp-p | 75mVp-p | 150mVp-p |
Voltage Adj. Range | CH1: -5%,+10% | CH1: -5%,+10% | CH1: -5%,+10% | |||
Voltage Tolerance | ±2% | ±6% | ±2% | ±5% | ±2% | ±5% |
Setup,Rise,Hold Up Time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load | |||||
|
| |||||
INPUT |
| |||||
Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||||
AC Current | 2A/115V 1A/230V | |||||
Efficiency | 73% | 76% | 78% | |||
Inrush Current | Cold start 18A/115V 36A/230V | |||||
Leakage Current | <1mA/240VAC | |||||
|
| |||||
PROTECTION |
| |||||
Over Load | 105%~150% | |||||
| Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed | |||||
