Pass GS CE FCC Medical Power Adapter 12V 24V 6W Power Adapter AC DC Switching Power Supply for Security CCTV Camera

Get reliable and certified Pass GS CE FCC Medical Power Adapter 12V 24V 6W Power Adapter AC DC Switching Power Supply for Security CCTV Camera from our factory. Shop now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YS6V-E
Sample
Free
Dimension
69*27*38mm
Transport Package
1PC/Polybag+Inner Box, 50PCS/CTN.
Trademark
Yingjiao
Origin
Zhejiang, China
Production Capacity
1500000 Piece/Pieces Per Month

Product Description

Pass GS CE FCC Medical Power Adapter 12V 24V 6W Power Adapter AC DC Switching Power Supply For Security CCTV Camera

Product Description

Input:100-240VAC 50/60Hz
Output Voltage: 5V-24V DC
Rated Power :6W max
Approvals: CE/CB/FCC/TUV

Features :

1. Univeral AC input/ Full range
2. Energy efficiency level VI
3. Leakage Current: <0.25mA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit

6. Withstand voltage : 3KV
7. Life Warranty: 3 years

Applications:

- Liposuction machine

- Patient monitors

- Blood oxygen monitors

- Deep vein thrombosis

- Low-frequency therapy device

Model:

YS6V-0501200

YS6V-0601000

YS6V-0750800

YS6V-0900660

YS6V-1200500

YS6V-2400250

Power:

6W max

Input:

AC100-240V

Output Voltage:

5V DC

6V DC

7.5V DC

9V DC

12V DC

24V DC

Output Current:

0-1.2A

0-1A

0-0.8A

0-0.66A

0-0.5A

0-0.25A

Inrush Current:

65 Amps max. at 240VAC/50Hz,full load

Leakage Current:

<0.25mA/240VAC

No Load Power Consumption :

<0.5W

Protections:

Short Circuit /Over Current /Over Voltage/over temperature protection

Short Circuit Protection (SCP):

Protection to Zero Voltage

Over Voltage Protection (OVP):

≤Vout*150%

Over Current Protection (OCP):

110%-180%

Withstand voltage:

I/P-O/P 3kVAC

Working TEMP.:

-20°C-50°C

EMC standards:

UL62368-1,EN62368-1,CSA22.2,EAC TP TC004 approved

Safety standards:

FCC part15 class B,EN55032 class B,EN61000-4-2,3,4,5,6,8,11,EN610003-2,3

Dimension:

58*26*74mm

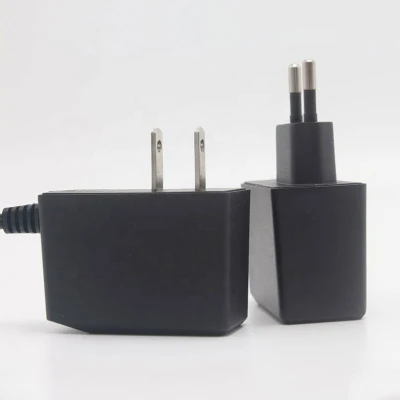

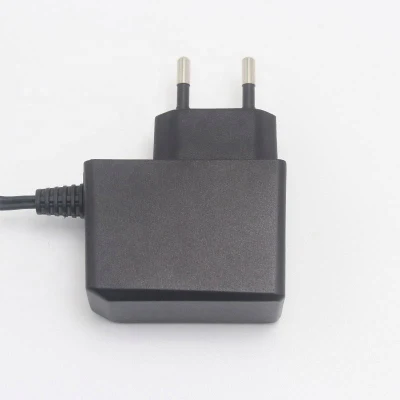

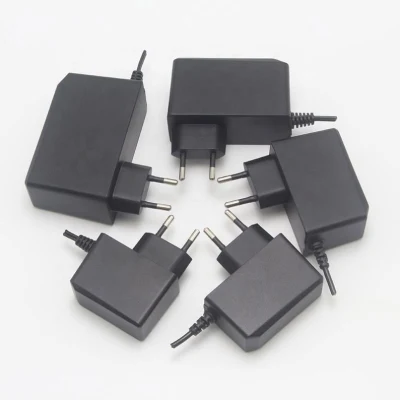

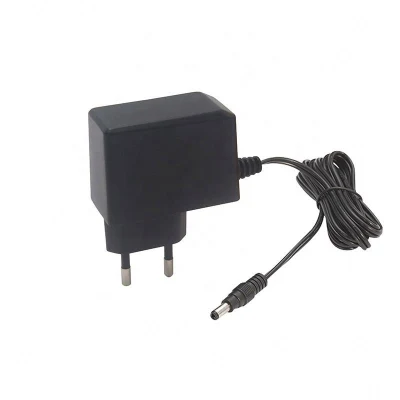

PRODUCT SHOW
