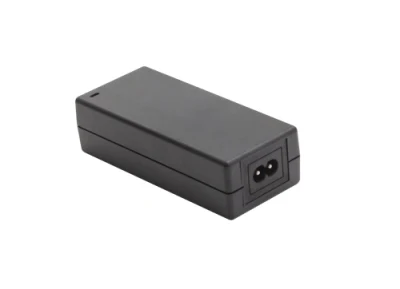

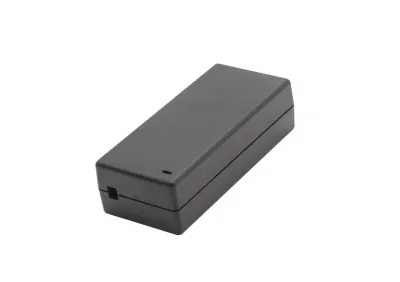

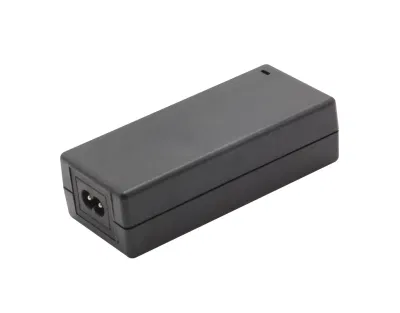

Power Adapter Plastic Case Switching Power Adapter 24W 12V SMPS

Get the high-quality Power Adapter Plastic Case Switching Power Adapter 24W 12V SMPS from our factory. Reliable, durable, and efficient. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YS24
Dimension
88*40*28mm
Life
3-5 Years Alternative
Output Frequency
50/60Hz
Weight
122g
Output Voltage
5-48V
Series
Desktop Type
Output Power
1 - 50W
Input Voltage
100-240VAC
Transport Package
1PC/PE Bag+White Box, , 50PCS/CTN/34*31*37cm
Trademark
Yingjiao / OEM / ODM
Origin
Zhejiang, China

Product Description

Power Adapter Plastic Case Switching Power Adapter 24W 12V Smps

Product Description
Model: YS24
Power: 24W max.
Input: 100-240VAC 50/60Hz
Output Voltage: 5-48V
Output Current: 0.1-3.5A
Input current: 0.6A max.
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
Leakage Current: 0.25mA Max. at 264VAC input
Energy Efficiency Level VI : CoC 5 / DoE 6 / CEC VI
No Load Power Consumption : <0.075W
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Working TEMP.: -20°C-50°C
Working Humidity: 5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: -40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:  EU,US,UK,AU etc. type according to customer's choice
Certificates and approvals: UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION: Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2
Flicker Test : EN 61000-3-3
EMS IMMUNITY: ESD  Test:EN 61000-4-2
RS    Test:EN 61000-4-3
EFT   Test:EN 61000-4-4
Surge Test:EN 61000-4-5
CS     Test:EN 61000-4-6
DIP    Test:EN 61000-4-11
MTBF: 100000 hours minimum at full load at 25 ambient
Life: 3-5 years alternative
Dimension: 88*40*28mm
Weight: 122g
Packing: 50PCS/CTN,34*31*37cm



Details:



Model: YS24-0503500 YS24-0902500 YS24-1202000 YS24-1501600 YS24-2401000 YS24-4800500
DC Voltage: 5V 9V 12V 15V 24V 48V
Rated Current: 3.5A 2.5A 2A 1.6A 1A 0.5A
Current Range: 0-3.5A 0-2.5A 0-2A 0-1.6A 0-1A 0-0.5A
Rated Power: 17.5W 22.5W 24W 24W 24W 24W
Ripple & Noise(max.): 90mVp-p 120mVp-p 200mVp-p 200mVp-p 250mVp-p 300mVp-p
Voltage Tolerance: ±5% ±5% ±5% ±5% ±5% ±5%
Line Regulation: ±3% ±3% ±3% ±3% ±3% ±3%
Load Regulation: ±5% ±5% ±5% ±5% ±5% ±5%
Efficiency: 82.85% 86.52% 86.80% 86.80% 86.80% 86.80%
Setup,Rise,Hold up time: 1.5second max./40 MS max./15 MS max. at 100VAC input and output max. load.
