Silicon Controlled 10kw 12 AMP DC SMPS Power Supply

Shop our Silicon Controlled 10kw 12 AMP DC SMPS Power Supply. As a factory, we offer reliable power supply solutions for your industrial needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CY-JS-DC-10KW
Input Voltage
AC380±10%V
Cooling Mode
Air-Cooling
Output Power
10kw
Warranty
One Year
Transport Package
Wooden Box
Specification
480*135*380(mm)
Trademark
CY
Origin
Zhengzhou, China
Production Capacity
120 Sets Per Month

Product Description

Silicon controlled 10kw 12 amp dc smps power supply

Technical parameter of Power Supply:
Product Name DC magnetron sputtering plating power supply
Items No. CY-JS-DC-10KW
Type CNC intelligence power supply
Input Voltage AC380±10%V
Output Power 10KW
Output Current DC 0~12A
Output Voltage Work voltage 200V~800V, No-Load Voltage>1kV
Output Wave Custom constant voltage, constant current, constant power
Waveform mono-polar DC
Work mode steady pressure
Regulation Precision ≤1%
Efficiency ≥90%
Power Factor cosΦ≥0.9
Display Mode Chinese-English LCD display
Display Content Working state, output voltage, output current, set value
Output Protection Output overvoltage, output overcurrent and output offset
Input Protection Output overvoltage, Output undervoltage, input overcurrent, open phase
Safety Protection Grounding protection, leakage protection, external control protection, lightning protection, overheating
Insulation Class B
Protect Grade IP20
Protection Response Time 1uS
Input Shell Resistance ≥20MΩ
Output Shell Resistance ≥20MΩ
Input Withstand Voltage 2000V/1min
Output Withstand Voltage 3500V/1min
Temperature 0~35ºC
Humidity ≤80%
Cooling mode Air-cooling
Dimensions 480*135*380(mm)
Note Factory default analog interface

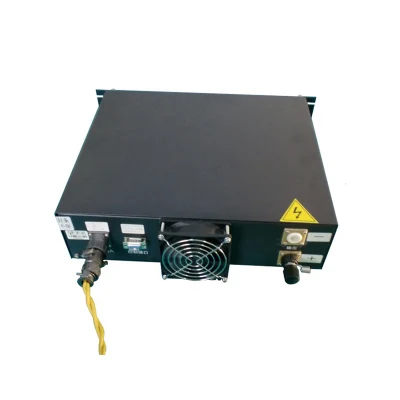

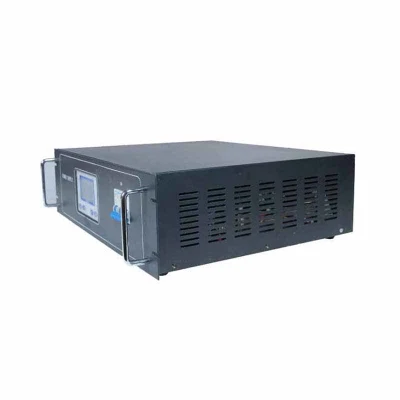

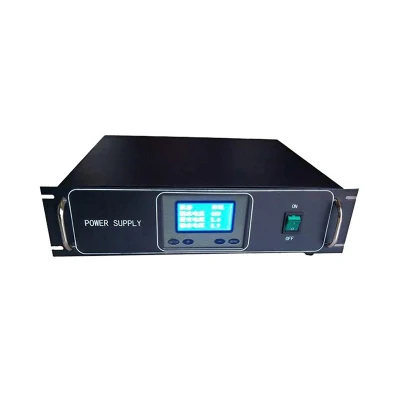

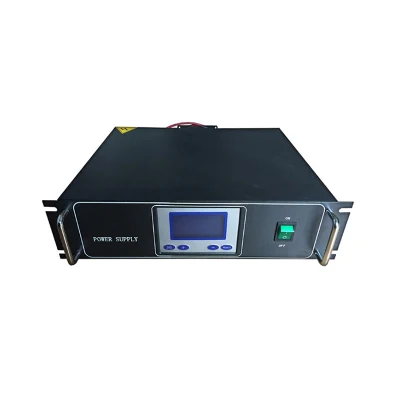

More photos of Power Supply:
Silicon Controlled 10kw 12 AMP DC SMPS Power Supply
Silicon Controlled 10kw 12 AMP DC SMPS Power Supply
Silicon Controlled 10kw 12 AMP DC SMPS Power Supply

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Silicon Controlled 10kw 12 AMP DC SMPS Power Supply
Silicon Controlled 10kw 12 AMP DC SMPS Power Supply
Silicon Controlled 10kw 12 AMP DC SMPS Power Supply

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
