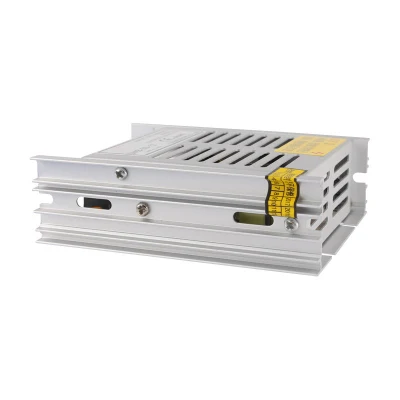

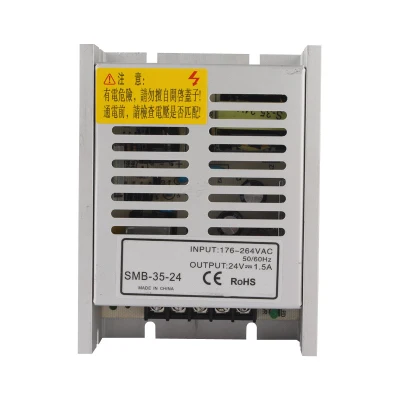

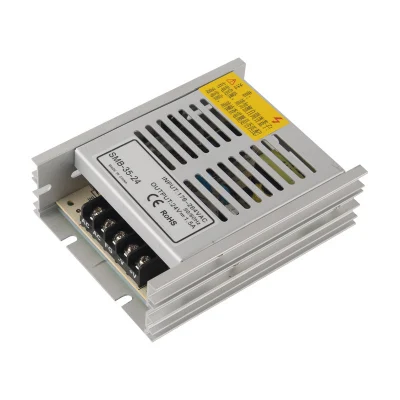

SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS

Get reliable 35W 24V 1.5A Single Output Thin Power Supply SMPS from our factory. High-quality and efficient for your power needs. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SMB-35-24
Voltage Regulating Mode
Width Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Certification
CE, RoHS, ISO
Brand
Mskj
Working Temperature
-10~+60 Degree C, 20%~90%Rh
OEM
Available
Safety Standard
En60950 UL60950 GB4943
Voltage Range
90-260VAC 240-373VDC
Transport Package
Packed in Standard Export Carton or Wooden Case
Specification
SMB-35-24
Trademark
MSKJ
Origin
China
HS Code
8504401400
Production Capacity
500000

Product Description

 AC-DC LED Power Supply with Ce RoHS
1. Advantage and value

Normal switching power supply:
100% full load burn-in test
Protections: Short circuit, over load, over current, over temperature
High efficiency, low ripple noise
One year warranty
LED Driver:
*Small size, light weight, high efficiency, long life, safety and reliability
*Built-in PFC function
*Protections: Over voltage, Over current, Over temperature., Short Circuit or customied
*Waterproof Rank: IP67
*Ideal for outdoor LED lighting, LED street lights, LED tunnel lighting and so on
2. Certificate:  CE certificate,  ROHS,  CCC,  ISO and so on.

3. Brand
MSKJ or OEM as you like.
4. Workers: 150 person
5. R&D departement
6. QC departement
Machine: 10

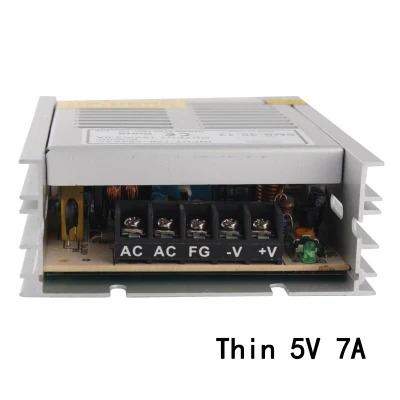

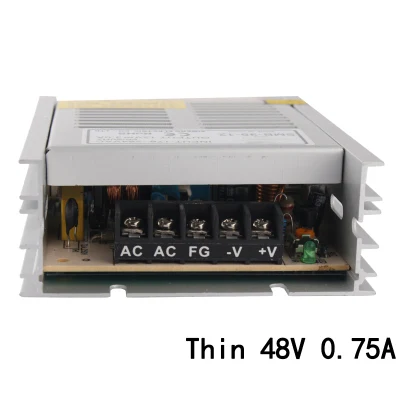

MODEL SMB-35-5 SMB-35-12 SMB-35-24 SMB-35-48
OUTPUT

DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 7A 3A 1.5A 0.75A
RATED POWER 35W 36W 36W 36W
RIPPLE&NOISE 50mVp-p 50mVp-p 70mVp-p 70mVp-p
VOLTAGE ADJ.RANGE 4.75-5.5V 10.8-13.2V 13.5-16.5V 21.6-26.4V
VOLTAGE TOLERANCE ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±0.5% ±0.5% ±0.5%
SETUP,RISE TIME 500ms,20ms/230VAC
HOLD UP TIME(TYP.) 30ms/230VAC 25ms/115VAC at full load
INPUT

VOLTAGE RANGE 170-260VAC 240-373VDC
FREQUENCY RANGE 47-63HZ
EFFICIENCY(Typ.) 78% 80% 84% 87%
AC CURRENT(Typ.) 0.3A/230VAC
INRUSH CURRENT COLD START  32A/220V
LEAKAGE CURRENT 0.5mA/240VAC
PROTECTION

OVERLOAD

105-150% RATED OUTPUT POWER
Protection type:Hiccup mode,recovers automatically after fault condition
OVER VOLTAGE

5.75V-6.75V 13.8V-16.2V 17.2V-20.25V 27.6V-32.4V
Protection type:Hiccup mode,recovers automatically after fault condition
ENVIRONMENT

WORKING TEMP -10~+60°C
WORKING HUMIDITY 20-90%RH non-condesing
STORAGE TEMP,HUMIDITY -20~+85°C,10-95%RH
TEMP.COEFFICIENT ±0.03%°C(0-50°C)
VIBRATION 10-500HZ
SAFETY&EMC

SAFETY STANDARD CE RoHS
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
ISOLATION RESISTANCE I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI CONDUCTION&RADIATION Design refer to GB4943,UL60950,EN60950
EMC STANDARD Design refer to GB9254,EN55022 Class A
DIMENSION L112*W88*H34mm
PACKING 0.27KG

SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS
SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS
SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS

SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS SMB-35-24 35W 24V 1.5A Single Output Thin Power Supply SMPS

1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
    A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

2. Q: I need your price list of all your products, do you have a price list ?
    A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!

3. Q: I can't find the product on your catalogue, can you make this product for me?
    A: Our catalogue shows most of our products,but not all.So just let us know what product do you need, and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 35-45days."

4. Q: Can you provide samples ? Are the samples free ?
    A: Yes,we can provide samples.Normally,we provide samples for test or quality checking.But you have to pay for the sample and shipping cost.

5. Q: What kind of payment do you accept ? Can I pay RMB ?
    A: We accept T/T(Wire transfer),Western Union LC and Paypal. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."

6. Q : What about your delivery time?
    A: We have a lot of products in stock.We can send the stock products in 3 work days. If without stock,or stock is not enough, we will check the delivery time with you."

7. Q : How to ship my order ? Is it safe?
    A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
8.Q: Where is your market?
A. Our products are popular export to Africa, South Asia, Middle East and so on. Surely we hope you can join us and make mutual benefits from our cooperation.

9.Q: What's the loading port?
A. Usually we prefer Ningbo port (Zhejiang) for delivery, others like Shanghai port is ok.

10.Q: Could you offer Form A or C/O?
A . Absolutely it is not a problem.

11.Q: How long is the warranty time?
A . 12months from you receive the goods.

12.Q: What kind of certificate do you have?
A. We have CE, ISO9001, SONCAP and testing report for all our products.

13.Q: What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.

14.Q: Would you accept to use our logo?
A. Quantity is over 500pcs/capacity, it is absolutely no problem to do OEM.

15.Q: We want to know about production capacity.
A. Our average capacity is 50000 pcs per month.

16.Q: What kind of material of transformer?

A. We have two types, one is 100% aluminum EI transformer, other one is 100% aluminum toroidal transformer. It depends on your requirements. In fact, those two have no difference for usage.                                                                                                    "Any requirements or question,welcome to ""Send"" us an e-mail Now!!!
