12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07

Get high-quality 12V 0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07. We are a factory specializing in LED power supplies.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Why Choose US
  • Company Profile
  • Certifications
  • Products Process
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
HY-5W-12V500MA-CB-WZ
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Brand
Djyoke
MOQ
100PCS
Output Current
500mA
Output Voltage
12V
Type
Constant Voltage Sourse
Protection
Ovp Otp Ocp SCP
Efficiency
82%
Weight
13.6g
Customize
ODM&OEM
Output Frequency
50/60Hz
Power Type
Switch Power Supply
Product Name
12V 500mA/42*19super Thin External Constant Voltag
Power Factor
0.65
Usage
Fan, Strip Light, Smart Mirror and etc.
Protection Class
IP44
Interface Type
Wire
Transport Package
Paper Box or Carton

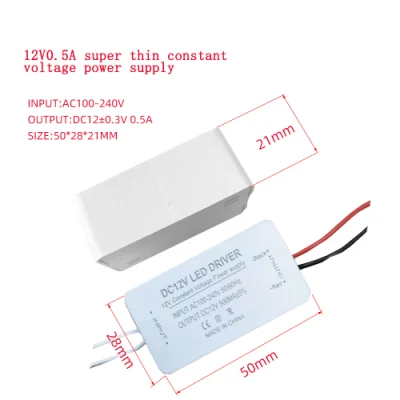

Specification
50*28*21mm
Trademark
DJYOKE
Origin
Guangdong, China

Product Description

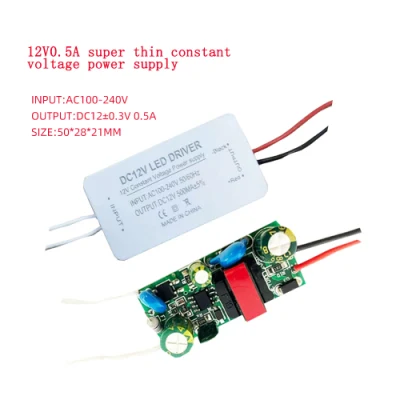

12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07

Product Description

12V0.5A/42*19mm super thin external constant voltage power supply for led spotlight lamp driver power supply 07

12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 0712V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 0712V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07



Product Parameters
Main performance indexes:
1.Input parameter:
Parameters Unit Test description Minimum Typical Maximum
Input Voltage V(AC) Normal 100 220 240
Input frequency HZ Normal 43 50 65
Power factor PF Normal 0.51 0.53 0.63
Input Inrush Current A Cold start under normal conditions

2.Output parameters
Parameters Unit Minimum Typical Maximum
Output current MA 20 500 500
Output voltage V 11.9 XX 12.1
Output ripple MV
Constant voltage accuracy % 1% 3% 5%

3.Overall performance
AC Input Output
Input Voltage(V) Power consumption(W) Output voltage(V) Output current(MA) Power Factor   Efficiency
85 6.26 9.1 500 0.63 0.73
110 7.97 12.03 500 0.63 0.75
120 7.92 12.03 500 0.63 0.76
170 7.91 12.03 500 0.57 0.76
200 8.02 12.03 500 0.53 0.75
220 8.12 12.04 500 0.52 0.74
240 8.23 12.04 500 0.51 0.73

4.Using environment Parameters
Parameters Unit Test description Minimum Typical Maximum
Working ambient temperature ºC Full load operation -18 +40 +60
Storage ambient temperature ºC   -25 25 +75
Why Choose US
  • Professional team for after-sale service 7*24.
  • Experienced R & D team and profesional sales team.
  • OEM & ODM and CKD service, we will evaluate, design and produce your customized products.
  • Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
Company Profile
12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07
12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07

Shenzhen DJYOKE Electronics Co., Ltd. was founded in July 2013, located in Shenzhen, China.
The company is mainly engaged in the whole system of development, manufacturing and marketing of the electronic products, MCU and embedded system.We have much experience and competitive advantages on development & mass production in power module, sensor module, solar inverter and application module, 433, power line carrier, 485, LORA, Bluetooth signal transmission module and so on.
Following are our main business :
1)AC/DC power module, such as Led driver,power supply, adaptor,charger .
2) DC/DC power module .
3)DC/AC high power inverter, Mobile Power Station with solar-panel .
4)Domestic solar-electric system .
5) MCU system development and mass production services.
6) Electronic PCBA design, Mould design, 3D print and Mass production service.
7) Plastic housing, Metal Housing buyer services.
8) SKD,CKD and all components buyer services.

Certifications



12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07
Products Process



12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07
Packaging & Shipping



12V0.5A/42*19mm Super Thin External Constant Voltage Power Supply for LED Spotlight Lamp Driver Power Supply 07
FAQ

Q1: What is your MOQ of power supply?
A: Our MOQ is 5 pieces.

Q2: Can you accept OEM & ODM products, SKD & CKD services?
A: Highly welcome to customize all kinds of electrical power supply OEM & ODM products, and our company provide SKD & CKD services.

Q3: Can you offer sample?
A: Yes, we offer sample for you.

Q4: How to place an order?
A: You can place an order on our " Ready To Send" product, or contact with our company sales person to place an order for you.

Q5: How to delivery to us the ordered products?
A: We usually delivery by sea, by China Europe train and by air. Use FedEx, DHL, UPS, EMS, TNT to delivery sample or small amount product.

Q6: How many years warranty of your power supply?
A: Can be 2 ~ 5 years warranty.

Q7: How could I pay for our order?
A: Pay by Alibaba Assurance order payment link, Western Union, T/T, L/C, PayPal or as your requirements. Then we will send you our bank details.

Q8: How long can I get my order?
A: For samples, if the samples are our company standard products, we will send you in 3 working days. If the samples  are customized products, we will finish production and ship within 7~10 working days. For bulk orders, depends on your design and the quantities of products, usually 15 ~ 20 wor-king days to send  for you.
