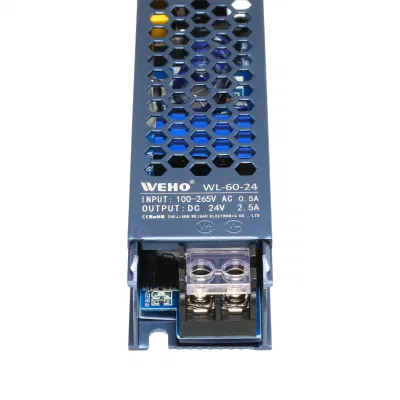

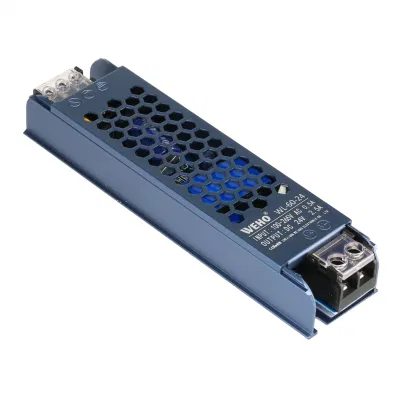

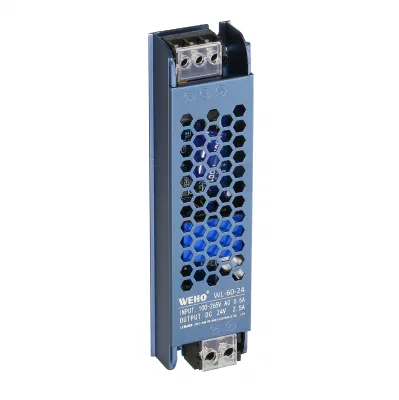

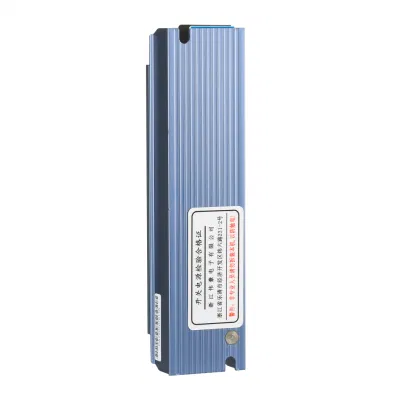

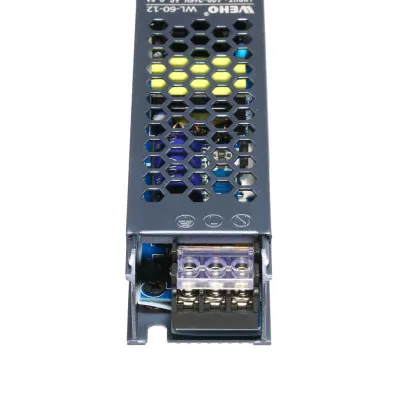

12V 24V Lighting Driver Ultra Thin Power Supply DC 60W AC to DC Driver for LED Strips

Get the 12V 24V Lighting Driver Ultra Thin Power Supply DC 60W AC to DC Driver for LED Strips from our factory. High-quality, reliable and efficient power supply for LED lighting solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WL-60-12
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
Two-way Transmission
Modulation System
PFAW
Certification
CE, RoHS
Brand
Weho
Hold up Time
30ms/230VAC 12ms/115VAC at Full Load
Voltage Range
110V/220V
Frequency Range
47~63Hz
Efficiency
88%
Leakage Current
<0.75mA / 240VAC
Transport Package
Carton or Plywood Case
Specification
142*35*22mm
Trademark
Weho
Origin
Zhejiang
HS Code
8504401400
Production Capacity
50000/Year

Product Description

12V 24V Lighting driver Ultra Thin Power Supply DC 60W AC to DC Driver For LED Strips

Product features:

1. Aluminum alloy shell, natural air cooling and heat dissipation.

2. IP20 grade, available in all weather conditions.

3. Ripple Noise: ≤180mv,Silent mode.

4. Efficiency: >86% (Don't exceed rated power, Recommended to load 80%).

5. Safety Protection: Output over-voltage, over-current and short-circuit protection.
12V 24V Lighting Driver Ultra Thin Power Supply DC 60W AC to DC Driver for LED Strips



Model 12V 60W 24V 60W
Output Rated voltage 12V 24V
Rated current 5A 2.5A
Output voltage range 11.7-12.2V 23.7-24.2V
Rated power 60W 60W
Efficiency >88% >89%
Ripple and roise <200mV <200mV
Load adjustment rate 1%
Liner adjustment rate 1%
Input Input voltage range 100~265V AC
AC input cuurent 0.5A 230V
PF value >0.65
Frequencry range 50-60Hz
Cold start current 25A/230VAC
Protection
characteristic
Power protection If it is greater than 105% of the rated output power,
the circuit will automatically reduce the output voltage
Short circuit protection Hiccup mode, which can recover automatically
after abnormal conditions are removed
Environment Operating temperature, humidity -40ºC~ +70ºC   20%~90%RH
Storage temperature, humidity -40ºC~85ºC   10%~95%RH
Safety regulations Withstand voltage performance I/P-O/P: AC2.5KV  5mA 60S;
I/P-FG: AC2KV 5mA 60S
Insulation impedance I/P-O/P: 100M ohms/500VDC/25ºC
Packing Product dimension 142*35*22mm
N.W 0.125kg
Amount/G.W/Dimension 156PCS/19kg/460*340*185mm
Circuit Diagrams






12V 24V Lighting Driver Ultra Thin Power Supply DC 60W AC to DC Driver for LED Strips 12V 24V Lighting Driver Ultra Thin Power Supply DC 60W AC to DC Driver for LED Strips
