5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD

Introducing our latest range of switching power supplies for LED strip lights, CCTV, and LCD screens. With various voltage and current options, as a factory, we guarantee quality and competitive prices. Choose from 5V, 12V, 24V, 36V, and 48V options with current ratings ranging from 1A to 50A to power your lighting and display needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
S-201-15
Voltage Regulating Mode
Width Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Certification
CE, RoHS, ISO
Brand
Mskj
Working Temperature
-10~+60 Degree C, 20%~90%Rh
OEM
Available
Safety Standard
En60950 UL60950 GB4943
Voltage Range
85 ~132VAC 170-264VAC 47-63Hz 240-370VDC
Transport Package
Packed in Standard Export Carton or Wooden Case
Specification
S-201-15
Trademark
MSKJ
Origin
China
HS Code
8504401400
Production Capacity
500000

Product Description

1. Advantage and value
Normal switching power supply:
100% full load burn-in test
Protections: Short circuit, over load, over current, over temperature
High efficiency, low ripple noise
One year warranty
LED Driver:
*Small size, light weight, high efficiency, long life, safety and reliability
*Built-in PFC function
*Protections: Over voltage, Over current, Over temperature., Short Circuit
*Waterproof Rank: IP67
*Ideal for outdoor LED lighting, LED street lights, LED tunnel lighting and so on
2. Certificate
CE certificate
ROHS
CCC
ISO
3. Brand
MSKJ
4. Workers: 150 person
5. R&D departement
6. QC departement
Machine: 10
Model

S-201-12 S-201-15 S-201-24 S-201-48
Output DC output Voltage 12V 15V 24V 48V
Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0%
Rated Current 16.5A 13.4A 8.3A 4.2A
Related Power 201w 201w 201w 201w
Wave&Noise 50mVp-p 50mVp-p 50mVp-p 100mVp-p
Adjustable range for DC Voltage ±10% ±10% ±10% ±10%
Set up,rise,hold up time 200ms  100ms  30ms
Input Voltage Range 85~132VAC 170-264VAC selected by switch 47-63HZ 240-370VDC
Input Current 4A/115VAC 2A/230VAC
Efficiency 80% 81% 83% 84%
AC inrush current Cold start current  15A/115V 30A /230VAC
Leakage current <0.5mA/240VAC
Protection Overload Related output power 105-150% start overload protection
Protection type: cutoff output, recovery after restart power
Over voltage 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V 55V-64.8V
Hiccup mode,recovers automatically after fault condition
Environment Working temp humidity -10~+60°C 20%~90%RH
Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing
Safety Withstand voltage I/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
Standard Safety standard Fit UL1012
Refer Design refer to GB4943,UL60950,EN60950
EMC standard Design refer to GB9254,EN55022 Class A
Size size L215*W115*H50mm
Package 0.92kg, 12pcs/11kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25  degree  of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.

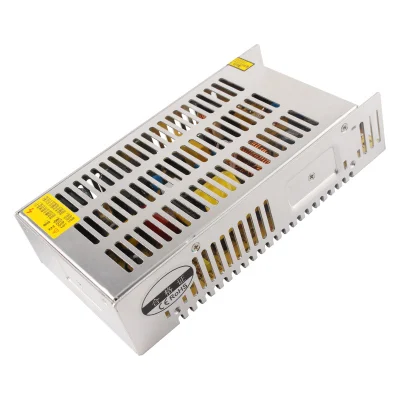

5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD

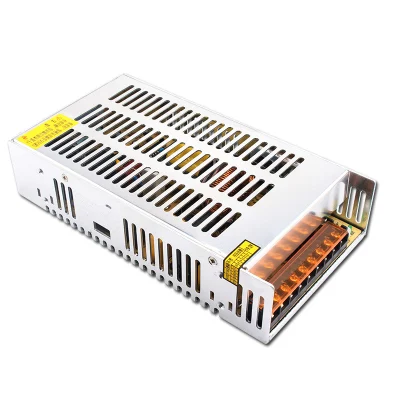

5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD 5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD

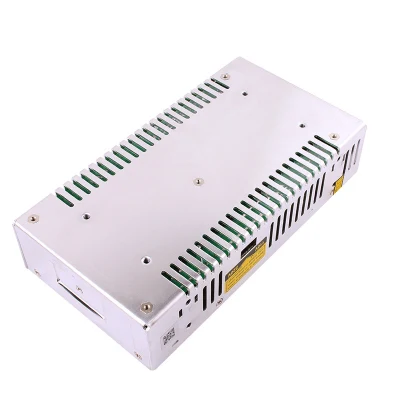

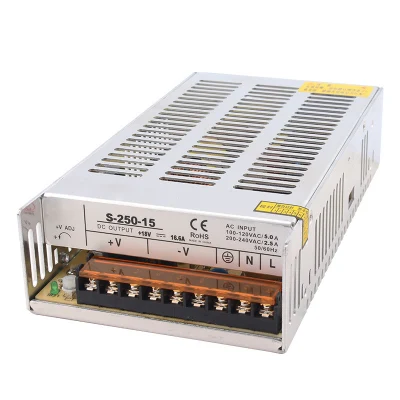

5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD 5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD 5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD 5V 12V 24V 36V 48V Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A for LED Strip Light CCTV LCD

1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
    A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

2. Q: I need your price list of all your products, do you have a price list ?
    A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!

3. Q: I can't find the product on your catalogue, can you make this product for me?
    A: Our catalogue shows most of our products,but not all.So just let us know what product do you need, and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 35-45days."

4. Q: Can you provide samples ? Are the samples free ?
    A: Yes,we can provide samples.Normally,we provide samples for test or quality checking.But you have to pay for the sample and shipping cost.

5. Q: What kind of payment do you accept ? Can I pay RMB ?
    A: We accept T/T(Wire transfer),Western Union LC and Paypal. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."

6. Q : What about your delivery time?
    A: We have a lot of products in stock.We can send the stock products in 3 work days. If without stock,or stock is not enough, we will check the delivery time with you."

7. Q : How to ship my order ? Is it safe?
    A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
8.Q: Where is your market?
A. Our products are popular export to Africa, South Asia, Middle East and so on. Surely we hope you can join us and make mutual benefits from our cooperation.

9.Q: What's the loading port?
A. Usually we prefer Ningbo port (Zhejiang) for delivery, others like Shanghai port is ok.

10.Q: Could you offer Form A or C/O?
A . Absolutely it is not a problem.

11.Q: How long is the warranty time?
A . 12months from you receive the goods.

12.Q: What kind of certificate do you have?
A. We have CE, ISO9001, SONCAP and testing report for all our products.

13.Q: What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.

14.Q: Would you accept to use our logo?
A. Quantity is over 500pcs/capacity, it is absolutely no problem to do OEM.

15.Q: We want to know about production capacity.
A. Our average capacity is 50000 pcs per month.

16.Q: What kind of material of transformer?

A. We have two types, one is 100% aluminum EI transformer, other one is 100% aluminum toroidal transformer. It depends on your requirements. In fact, those two have no difference for usage.                                                                                                    "Any requirements or question,welcome to ""Send"" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon."
